As Sarah baked cookies, she noticed steam and grease on her cabinets. She wanted a new range hood but was worried about the installation. Luckily, a range hood installation guide was online, ready to help.

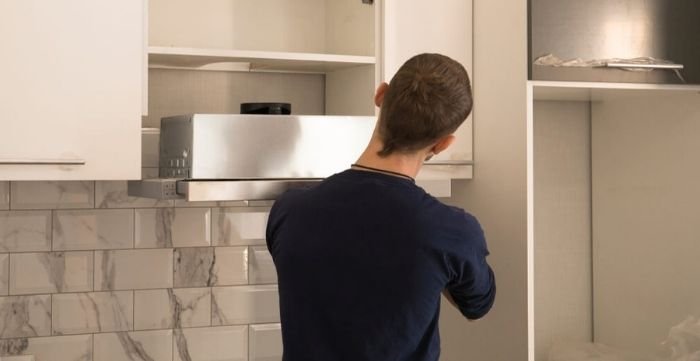

This guide will show you how to install an under-cabinet range hood. It’s perfect for DIY fans or new homeowners. Follow this tutorial to improve your kitchen and cooking.
Key Takeaways
- The installation process for a range hood under the cabinet typically takes roughly an hour.
- The guide focuses on installing a back-end mount range hood, as opposed to a top mount.
- Proper ventilation leads to better air quality and reduced heat and humidity in the kitchen.
- Ductless range hoods are a cost-effective option that don’t require ductwork.
- Ducted hoods are more powerful and efficient at removing odors, smoke, and grease from the kitchen air.
Ready to make your kitchen better? This detailed guide will help. Let’s get started and improve your cooking space!
Understanding the Benefits of an Under-Cabinet Range Hood
An under-cabinet range hood changes the game in kitchen ventilation. These appliances bring many benefits that make cooking better and more comfortable. Let’s explore why installing one in your kitchen is a smart move.
Improved Ventilation and Air Quality
An under-cabinet range hood removes heat, humidity, and particles from your kitchen. This improves air quality, making cooking healthier and more comfortable. It also cuts down on grease and smoke buildup, keeping your kitchen clean and safe.
Reducing Cooking Odors
Dealing with cooking smells that linger can be a real challenge. An under-cabinet range hood solves this problem. It captures and removes cooking odors, keeping your kitchen and home smelling fresh.
Increased Kitchen Safety
Range hoods are key to kitchen safety. They remove grease particles, lowering the risk of grease fires. This makes your kitchen safer for your family, adding to the benefits of improved air quality.
Getting an under-cabinet range hood is a wise choice for your kitchen. It boosts air quality, reduces cooking odors, and increases safety. These benefits make it a must-have for any modern kitchen.
Choosing the Right Range Hood for Your Kitchen
When picking a range hood, size, power, and type are key. Knowing these helps you find a hood that meets your needs and fits your kitchen’s style and layout.
Factors to Consider: Size and Power
The hood should be at least one inch bigger than your cooktop on all sides. This ensures it catches smoke, steam, and odors well. The power is measured in CFM, with higher numbers better for intense cooking. Aim for a hood that circulates all room air every 4 minutes to keep the air clean.
Types of Under-Cabinet Range Hoods
There are many types of under-cabinet range hoods, each with its own benefits:
- Ducted range hoods: These connect to air ducts to remove smoke and odors outside, offering the best ventilation.
- Ductless (recirculating) range hoods: These use charcoal filters to capture grease and recirculate air, perfect for kitchens without ducts.
- Convertible range hoods: These can be ducted or ductless, making them versatile for remodels or limited ventilation.
Budget Considerations
Cost isn’t the only thing to think about with range hoods. Consider long-term energy and maintenance costs too. More expensive models might have features like automatic shutoff and Wi-Fi, but they cost more. Balance your budget and needs to find the right hood for your kitchen.
| Range Hood Type | Pros | Cons |
|---|---|---|
| Ducted | Highly effective at removing smoke, steam, and odors | Requires ductwork installation, which can be costly |
| Ductless (Recirculating) | Versatile, no ductwork required, and suitable for kitchens without access to outside venting | Less effective at removing heavy cooking odors and may require more frequent filter replacement |
| Convertible | Offers the flexibility to be installed as either ducted or ductless | May be more expensive than dedicated ducted or ductless models |
Essential Tools and Materials You’ll Need
Starting a range hood installation project means you need the right tools and materials. This guide will help you get everything you need for a smooth installation.
Tools for Installation
- Reciprocating saw or hole saw to cut openings in cabinets or walls
- Drill with long bits for pilot holes and securing the range hood
- Screwdrivers, flathead and Phillips, for assembly and mounting
- A level to align and install the range hood correctly
Required Materials
You’ll also need various materials for the installation. These include:
- Ductwork, like rigid metal or flexible aluminum, for venting
- Electrical wiring and connectors for powering the range hood
- Mounting screws and anchors for attaching the range hood
Safety Gear
When working on any project, safety is key. Make sure you have:
- Eye protection, like safety goggles, for debris and dust
- A dust mask or respirator to protect your lungs
- Work gloves to prevent cuts and scrapes
Having all the range hood installation tools, electrical wiring materials, and safety equipment is crucial. Gather these items before starting your project.
Preparing Your Kitchen for Installation
Getting your kitchen ready for an under-cabinet range hood is key. Start by measuring your kitchen space carefully. This ensures the hood fits perfectly under your cabinet. Also, check your electrical wiring and duct paths to find the best ventilation and power options.
Measuring Your Space
Measuring accurately is crucial for picking the right range hood size. Measure the width, depth, and height of the area for the hood. Remember to account for any obstructions or features that might affect the fit. This will help you pick a hood that works well and looks good in your kitchen.
Finding the Right Electrical and Ventilation Options
Look at your kitchen’s electrical setup and ventilation to make sure the range hood fits well. Check the location of power outlets and if you need to run new wiring. Also, think about the best way to get the duct outside your home. These steps help you choose the right hood and prepare for a smooth install.
Ensuring Cabinets Are Secure
Before installing the range hood, check if your cabinets can hold its weight. If they can’t, you might need to make them stronger or find another way to mount the hood. This is important for the safety and long life of your range hood.
| Measurement Guideline | Recommendation |
|---|---|
| Kitchen Size | Range hood CFM (Cubic Feet per Minute) rating should be about double the square footage of the kitchen |
| Gas Cooktop BTU | Range hood BTU threshold should meet or exceed the total BTU output of the cooking surface |
| Mounting Height | Optimal distance: 20-24 inches above electric cooktop, 24-30 inches above gas cooktop |
| Duct Length | Maximum recommended smoke pipe length: 16 feet, with no more than 3 bends |
Step-by-Step Guide to Installing Your Range Hood
Installing a range hood under your kitchen cabinet might seem hard. But, with the right steps, it’s doable. Let’s go through the process to ensure your new range hood is installed right.
Disconnecting Power Supply
The first step is to turn off the power at your home’s breaker box. This step is key to avoid any electrical dangers. After the power is off, you can safely take out the old range hood if there is one.
Mounting the Brackets
With the power off, it’s time to put in the mounting brackets. Follow the maker’s guide to place and fix the brackets to your cabinet. This will give a strong base for your new range hood.
Attaching the Range Hood
Now, attach the range hood. Put the hood in place, making sure it lines up with the holes in the brackets. Use the screws given to fix the hood to the brackets, making sure it’s level and steady.
Make sure the installation is right and adjust if needed before moving on. Proper mounting is key for the range hood’s work and safety.
| Key Steps | Description |
|---|---|
| Disconnect Power | Shut off power to the circuit at the breaker box before starting the installation. |
| Install Mounting Brackets | Follow the manufacturer’s instructions to properly position and secure the mounting brackets. |
| Attach Range Hood | Lift the range hood into place, align it with the pre-drilled holes, and use screws to secure it to the brackets. |
By following these steps, you’ll get your range hood installed under your kitchen cabinet successfully. Always keep safety first and follow the maker’s advice during the process.
Wiring the Range Hood Correctly
Proper electrical wiring is key for your range hood’s safe and efficient use. Always start by turning off the power at the main circuit breaker. This step keeps you safe from shocks or damage while you work.
Safety Precautions
- Disconnect the power supply to the kitchen at the main electrical panel.
- Wear appropriate safety gear, including safety glasses and gloves.
- Ensure the work area is well-lit and free of any obstacles or hazards.
Connecting the Electrical Wiring
Start by running the electrical cable to the range hood’s spot. Follow the manufacturer’s guide closely. You’ll match white to white, black to black, and green or bare copper to ground.
Secure the wires with wire nuts, making sure they’re tight and not loose. After wiring, put back the electrical cover and check all connections are snug.
Testing Your Connections
Once wired, test the range hood. Turn the power back on and check the lights and fan. Make sure the fan works at all speeds and there’s no odd noise or vibration.
If problems show up, check your wiring again. Look at the manufacturer’s troubleshooting guide for help.
“Proper electrical wiring is the foundation for a safe and reliable range hood installation. Take the time to ensure your connections are secure and your hood is functioning correctly.”
Venting Options: Ducted vs. Ductless
Homeowners face a choice when installing a range hood: ducted or ductless venting. Knowing the pros and cons of each helps you decide what’s best for your kitchen and taste.
Pros and Cons of Ducted Venting
Ducted range hoods are top-notch at removing smoke, grease, and odors. They have a higher CFM rating, making them perfect for heavy cooking. Plus, they’re quieter because the motor is outside.
But, ducted hoods need a complex setup with an external vent. This can be pricey, and they only work with certain kitchen layouts. They also require an outside wall for ductwork.
When to Choose Ductless Venting
Ductless range hoods are great when venting outside is not possible or too expensive. They filter the air and recirculate it, making them ideal for apartments or kitchens without ductwork. They’re also easier and cheaper to install.
But, ductless hoods aren’t as good at removing smoke and odors. They can be louder because the blower is inside. They also need more frequent filter changes to work well.
Converting Ducted to Ductless
Want to switch from ducted to ductless? Some models can be converted with a recirculating kit. This gives you flexibility and lets you change your venting system as needed.
Choosing between ducted and ductless depends on your kitchen, cooking habits, and what you prefer. Think about the pros and cons to make the right choice for your home.
| Factors | Ducted Range Hoods | Ductless Range Hoods |
|---|---|---|
| Venting Power | Higher CFM ratings for more powerful suction | Lower CFM ratings, not as effective at removing smoke and odors |
| Noise Level | Generally quieter due to motor placement | Noisier due to blower location within the unit |
| Installation Complexity | More complex, requires external ductwork | Simpler and less expensive to install |
| Lifespan | Longer lifespan, over 10 years with minimal maintenance | Shorter lifespan, charcoal filters need replacement every 3-6 months |
| Maintenance | Dishwasher-safe filters, less frequent maintenance | Requires regular filter replacements for optimal performance |
Finalizing Your Installation
As you near the end of your range hood installation, it’s time for the final steps. These steps will make sure your setup is seamless and secure. You’ll seal gaps, make adjustments, and clean up. These actions will make your new under-cabinet range hood look and work great.
Sealing and Caulking
After mounting the range hood, seal any gaps around it and the ductwork. Use a high-quality caulk to fill in spaces and stop air leaks. This will make your range hood look better and work more efficiently.
Final Adjustments
Make sure your range hood is level and securely mounted. Adjust the mounting brackets or hood position if needed. This will ensure your installation looks professional and works right.
Cleaning Up
The last step is a thorough clean-up. Remove dust, debris, and packaging from the installation. Clean the hood and areas around it to remove fingerprints and smudges. This will leave your kitchen looking neat and tidy.
| Task | Time Required |
|---|---|
| Sealing and caulking | 15-20 minutes |
| Final adjustments | 10-15 minutes |
| Cleaning up | 20-30 minutes |
By sealing, adjusting, and cleaning up properly, you’ll get a professional-looking result. These steps will ensure your range hood works well for years. With these steps done, you can enjoy better ventilation and air quality in your kitchen.
Troubleshooting Common Installation Issues
Installing a range hood under your kitchen cabinets can be easy. But sometimes, you might run into common problems. Here are a few tips to help you fix these issues and make sure your range hood works well.
Uneven Installation
If your range hood looks uneven, it might be because of uneven cabinet surfaces or wrong mounting. Try adjusting the screws or making the cabinet stronger to get it level. This will make it look better and work better too.
Noise Problems
Too much noise from your range hood could mean a few things. It might be loose parts or wrong duct installation. Check for any rattling parts and tighten them if needed. Also, make sure the ductwork is right and not causing noise.
Lack of Suction
Poor suction from your range hood could be due to blocked vents, wrong duct size, or fan speed. First, check the vents for blockages like grease or debris. Then, make sure the duct size fits your range hood. Lastly, adjust the fan speed to get the best airflow and quietness.
Fixing these common problems quickly can make your range hood work better. It will help with ventilation and keeping your kitchen smelling fresh.
Maintenance Tips for Your Range Hood
Keeping your range hood in good shape is key for its best performance and long life. By following a few easy steps, you can keep your kitchen air flowing well. This way, you’ll enjoy its benefits for many years.
Regular Cleaning Routines
Cleaning the hood and filters regularly is a must. Use warm, soapy water to clean the outside and filters once a month. For grease filters, clean or replace them as the maker suggests. This stops grease buildup and keeps air flowing well.
Checking Filters
Some range hoods have charcoal filters that need changing every six months or when they stop working well. If you have dishwasher-safe filters, cleaning them is a breeze. This makes upkeep simpler.
Maintaining Vents and Ducts
Every year, check and clean the vents and ducts to get rid of grease and debris. This is important to avoid poor performance or fire risks. A clean system ensures efficient removal of heat, smoke, and grease while cooking.
