How to Test a Refrigerator Thermostat: The Ultimate Guide

Introduction

Your fridge must keep food and drinks at the right temperature. If it’s too warm or cold, it might be the thermostat’s fault. We’ll show you how to test your refrigerator thermostat to ensure it works right.

• Common signs of a faulty refrigerator thermostat include inconsistent temperature, frequent cycling, and frost buildup.
• Necessary tools for testing the refrigerator thermostat include a multimeter, screwdriver set, and thermometer.
• Testing the thermostat involves accessing it, using a multimeter to check for continuity, and adjusting the temperature as needed.
• Troubleshooting steps include checking the power supply, inspecting the thermostat sensor, and verifying airflow and ventilation.
• Regular cleaning and maintenance of the thermostat sensor can help prevent future issues.

What is a Refrigerator Thermostat?

The refrigerator thermostat is key to keeping your appliance’s temperature right. It watches the temperature and starts the cooling system when needed. This keeps your food fresh. The thermistor, a special resistor, also helps by measuring the temperature and telling the thermostat what to do.

Understanding the Thermostat’s Role

The thermostat keeps an eye on the fridge’s temperature all the time. If it gets too high, it turns on the compressor to cool it down. When it’s just right, it stops the compressor to save energy. This cycle keeps your food fresh and your fridge working well.

The thermostat on the outside can also affect the performance of a freezer if it’s left in a place like your garage. If you don’t purchase a garage ready freezer, then the thermometer will turn off the compressor and thus ruining the food inside of the freezer.

Types of Refrigerator Thermostats

There are two main types of temperature control systems:

• Mechanical Thermostat: Older or smaller refrigerators use a mechanical thermostat switch and sensing bulb to control the temperature.
• Electronic Control Board: Newer models have an electronic control board that works with temperature sensors to manage cooling.

Knowing what kind of thermostat your fridge has is important for testing, fixing, and keeping it running well.

Signs of a Faulty Refrigerator Thermostat

When your fridge’s thermostat goes wrong, it can cause many problems. These include uneven temperatures, the compressor turning on and off too much, and too much frost. All these signs can harm the freshness and safety of your food.

Inconsistent Temperature

If your fridge is too cold in some spots and too warm in others, it’s a sign of trouble. This uneven cooling can spoil your food and make your fridge use more energy. The ideal fridge temperature is between 35° F and 40° F (2° C to 4° C).

Frequent Cycling

A bad thermostat can make the compressor turn on and off too often. This can use more energy and wear out your fridge faster.

Frost Buildup

Too much frost in your freezer or fridge can mean a thermostat or defrost system issue. The freezer should stay at 0° F (-18° C) or colder.

If you see these signs, fix the problem quickly. This keeps your fridge working right and your food safe. Next, we’ll talk about getting ready to test your fridge’s thermostat.

Preparing to Test the Refrigerator Thermostat

Before you start testing your fridge’s thermostat, make sure you have the right tools. This ensures a safe and detailed check of your fridge’s temperature control. Here’s what you’ll need:

Tools and Equipment Needed

• A multimeter to measure voltage, resistance, and continuity. This is a crucial tool for testing the refrigerator thermostat.
• A screwdriver set to access the thermostat and other components within the refrigerator.
• Insulated gloves to protect your hands during the testing process.
• A thermometer to gauge temperature changes and verify the accuracy of the thermostat.
• The refrigerator’s user manual for specific instructions and diagrams related to the thermostat.
• Safety goggles to shield your eyes from any potential hazards during the testing.
• A replacement thermostat (optional) in case the existing one needs to be replaced.

With these tools for testing fridge thermostat and equipment needed to check refrigerator thermostat ready, you’re set. You’ll be able to check your fridge’s temperature control system thoroughly. Use a multimeter for refrigerator thermostat testing.

how to test a refrigerator thermostat

Keeping your refrigerator at the right temperature is key to keeping food fresh. The thermostat plays a big role in this. If it’s not working right, you might see uneven temperatures, the fridge turning on and off too much, and even ice forming inside. To keep your fridge running smoothly, it’s important to know how to check the thermostat.

1. First, find the thermostat in your fridge. You might need to take off the control panel or look behind the knobs.
2. Next, set your multimeter to the lowest ohms setting. Then, put the thermostat sensor in ice water and wait a bit for it to cool down.
3. Now, use the multimeter to check if there’s continuity across the thermostat terminals. If it’s working, you should see continuity.
4. Take the sensor out of the ice water and let it warm up to room temperature. Then, check the continuity again. It should show no continuity when it’s warm.
5. If the thermostat shows continuity when it’s cold and no continuity when it’s warm, it’s probably working right. But if the results are the opposite or don’t make sense, it might need to be replaced.

By following these steps, you can easily see if your fridge’s thermostat is working right. If it’s not, you might need to adjust or replace it. A working thermostat is important for keeping your food safe and fresh.

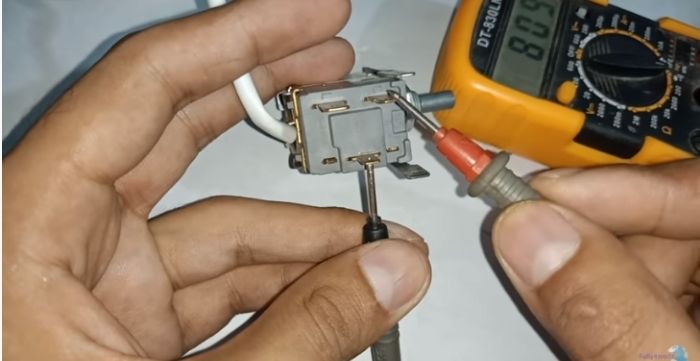

Testing the Refrigerator Thermostat with a Multimeter

To find out if your fridge’s thermostat is working right, a multimeter is key. It checks if the thermostat’s electrical connection is good. Here’s how to use a multimeter to test your fridge’s thermostat:

Setting up the Multimeter

First, make sure your multimeter is set up correctly. If it’s an analog model, press the red and black leads together to zero out the meter. Then, turn the range dial to the lowest ohms setting for both analog and digital models.

Checking for Continuity

Put the thermostat’s bulb in ice water to mimic cold. Next, connect the multimeter leads to the thermostat with alligator clips if needed. Turn the thermostat dial down while checking for continuity. If it doesn’t work at any setting, it’s likely broken and needs to be replaced.

By following these steps, you can accurately test your refrigerator’s thermostat using a multimeter. This helps find any problems that might be causing temperature issues or too much frost.

Adjusting the Refrigerator Thermostat

Adjusting your refrigerator’s thermostat is key to keeping food fresh. To change the how to adjust refrigerator thermostat, find the temperature control knob or slider in the fresh food area. You might need to turn the knob or slide it to set the temperature.

After setting the setting fridge temperature control, let the fridge run for a few hours. Then, use a thermometer to check the fridge’s temperature. If it’s not right, adjust the thermostat again and keep checking until it’s perfect.

Experts say your fridge should be below 40°F (4°C) and your freezer around 0°F (−18°C). Place fridge thermometers on the middle shelf for the best reading. Check the temperature after 5–8 hours and again after 24 hours for full adjustments.

Proper thermostat adjustment can make your fridge last longer and keep food fresh. If you’re not sure or have problems, get help from a professional.

Troubleshooting the Refrigerator Thermostat

If your fridge isn’t cooling right, you need to check the thermostat. First, make sure it has power. Check the plug and the circuit breaker or fuse. Also, adjust the thermostat settings to the right temperature and wait for it to adjust.

Checking Power Supply and Wiring

A bad thermostat can spoil food fast. It can also mean the fridge isn’t getting enough power. Look for any damage or loose connections in the wiring.

Inspecting Airflow and Ventilation

Good airflow is key for keeping your fridge cool. Make sure nothing is blocking the vents. Too much frost or a warm fridge can mean airflow issues.

If you’ve tried everything and still have problems, it might be something bigger. Like a bad compressor or fan. At that point, it’s best to call a pro for help.

“Regular cleaning of the thermostat sensor is crucial to prevent dust accumulation and ensure accurate readings.”

Maintaining the Refrigerator Thermostat

Keeping your refrigerator’s thermostat in good shape is key for its best performance. Regular cleaning and care can greatly extend its life and efficiency. Here are some tips to help you keep your thermostat in top condition:

Regular Cleaning and Maintenance Tips

• Regularly clean the thermostat sensor inside the fridge to avoid dust and debris. Use a soft brush or cloth to gently remove dirt.
• Check the thermostat settings often and make sure vents are clear. This helps keep the right temperature and avoids thermostat problems.
• Make sure the area around the thermostat sensor is clear. Avoid placing items or obstructions near it.
• If you notice temperature issues or think the thermostat is off, consider getting it professionally calibrated.

By following these refrigerator thermostat maintenance tips, you can extend your thermostat’s life. Regular cleaning of the thermostat sensor and keeping vents clear are key to preventing thermostat issues.

“Proper temperature regulation is key to the longevity and efficiency of your refrigerator. Regular thermostat maintenance can make a significant difference in its performance.”

When to Call a Professional

If your fridge’s thermostat doesn’t pass the continuity test or the temperature keeps changing, it’s time to contact a professional technician. A bad thermostat can make your food unsafe and spoil faster. Trying to fix it yourself can cause more harm. A skilled technician can find the problem, tell you if you need a refrigerator thermostat replacement, and fix your fridge’s temperature control.

Some signs you need to hire a refrigerator repair technician include:

• Temperature keeps changing or is always off
• The compressor or cooling system keeps turning on and off
• There’s too much frost in the freezer or fridge
• You can’t test or adjust the thermostat with a multimeter

Getting professional help for a faulty thermostat saves you time, money, and stress. A good technician can find the problem fast and fix it right. This keeps your fridge working well.

“Regularly maintaining your refrigerator’s thermostat can extend its lifespan and prevent costly breakdowns.”

Don’t wait to call a trusted refrigerator repair service if you think your thermostat is bad. They know how to keep your fridge running smoothly and your food fresh and safe.

Conclusion

In this guide, we’ve shown you how to test a refrigerator thermostat. This ensures your fridge keeps food at the right temperature. You learned about the thermostat’s role, how to spot problems, and how to use a multimeter for testing.

Don’t forget to clean and maintain your thermostat regularly. If you’re stuck, call a pro. Taking care of your thermostat helps keep food fresh and your fridge working well.

Now, you’re ready to handle any thermostat issues in your fridge. This means your appliance will keep food fresh and your home running smoothly.
